Installation & Fit

How to Install Trash Shield

Most pull-out setups work. A few do not. Run the three checks below before you order, then follow the three install steps once your Trash Shield arrives.

Will It Work in Your Cabinet?

Three checks. If your setup clears all three, Trash Shield will work.

Check 1: Cabinet Style

Works With

  • ✓ Most standard pull-out trash can systems
  • ✓ Single and double bin configurations
  • ✓ Bottom-mount and side-mount slide rails
  • ✓ Standard under-cabinet widths (12 to 21 inches)

Does Not Work With

  • ✗ Freestanding or pedal-operated bins
  • ✗ Top-mount or door-mount trash systems
  • ✗ Custom-built or fully enclosed cabinetry
  • ✗ Round or oval bins

Check 2: Gap Clearance

Pull the bin out and level it. Measure from the top of the bin's rim straight up to the underside of the countertop or cabinet above it.

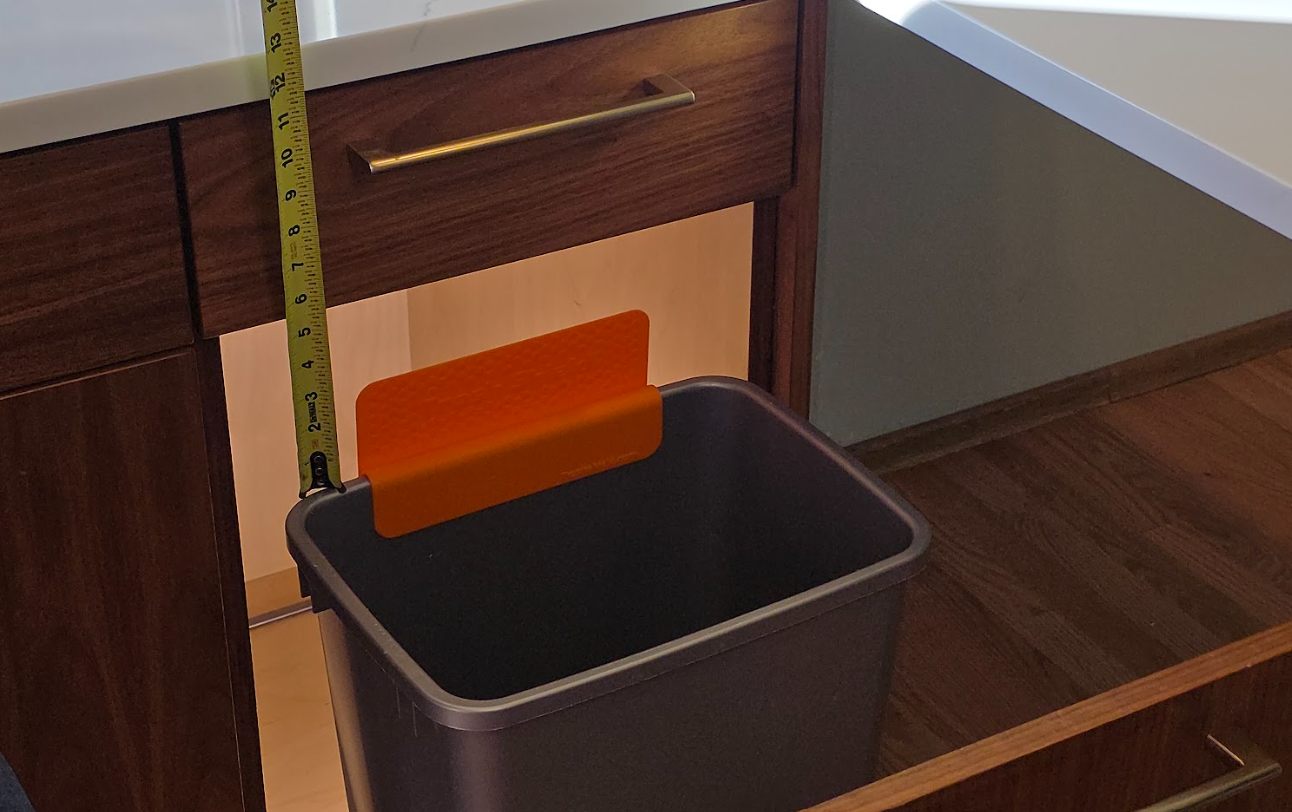

Diagram showing where to measure the gap, from the top of the bin's rim to the underside of the cabinet above, with a Trash Shield overlay
Where to measure
Real-world photo of measuring the gap above a level pull-out trash can with a tape measure inside a cabinet
Measuring with a tape, bin level

Minimum gap is 3 inches. If your gap is less than 3 inches, Trash Shield will not fit. If your gap falls between sizes, choose the smaller size.

Example of an insufficient gap: a Trash Shield pressed against tight cabinet clearance, illustrating a setup where it will not fit
Example: an insufficient gap. Trash Shield will not fit setups like this.

Check 3: Unobstructed Lip

Trash Shield clips over the exposed lip of your trash can. Anything that interrupts, raises, doubles, or hides that lip will prevent it from clipping on. If your setup looks like any of these, it will not fit.

Trash can rim with molded fins, bag-grip wires, or handles that block the lip and prevent Trash Shield from clipping on

Fins or Handles

Molded tabs, bag-grip wires, or handles on the rim that block the lip.

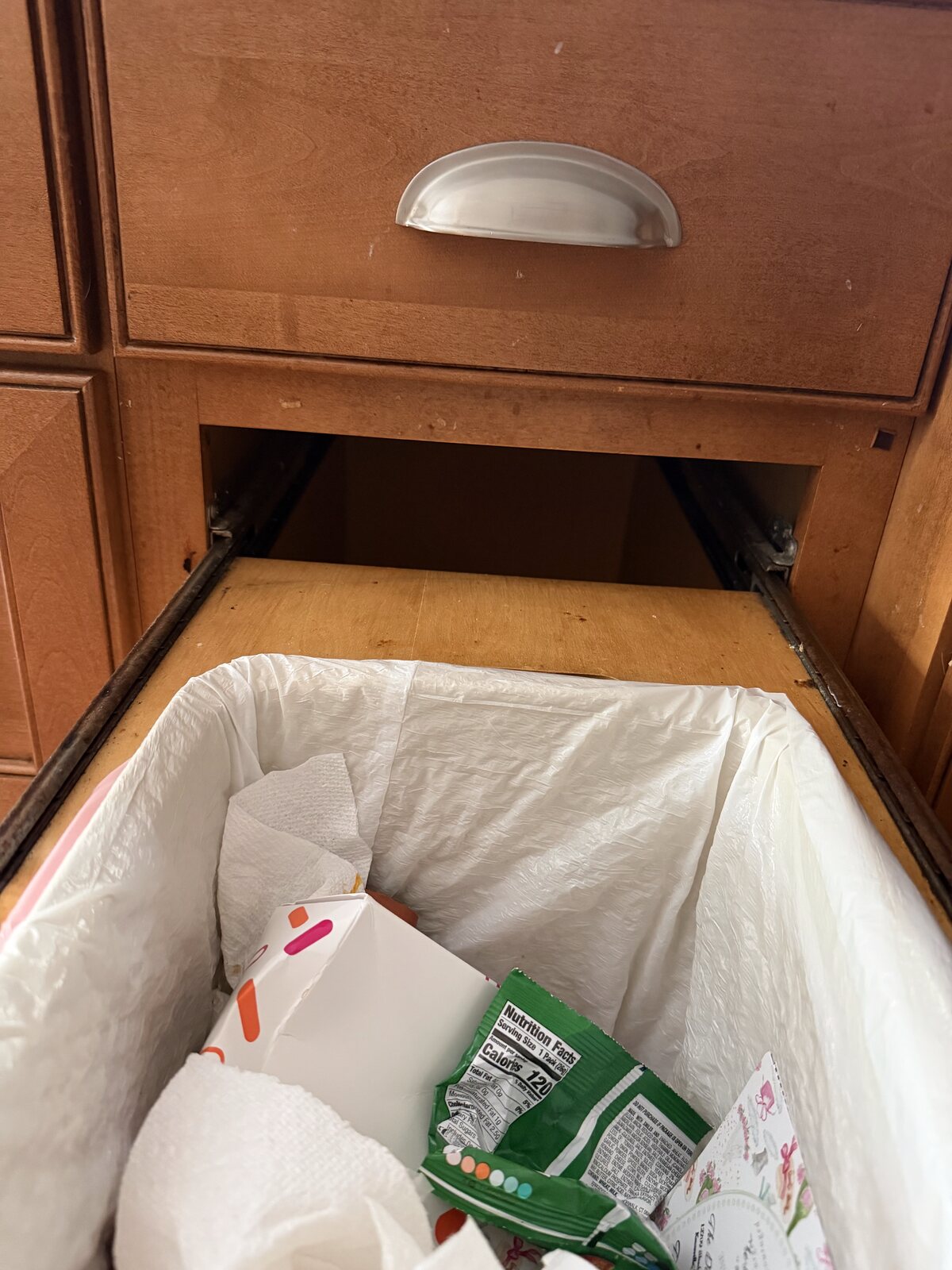

Custom wood housing built around a pull-out trash can, blocking the rim Trash Shield needs to clip onto

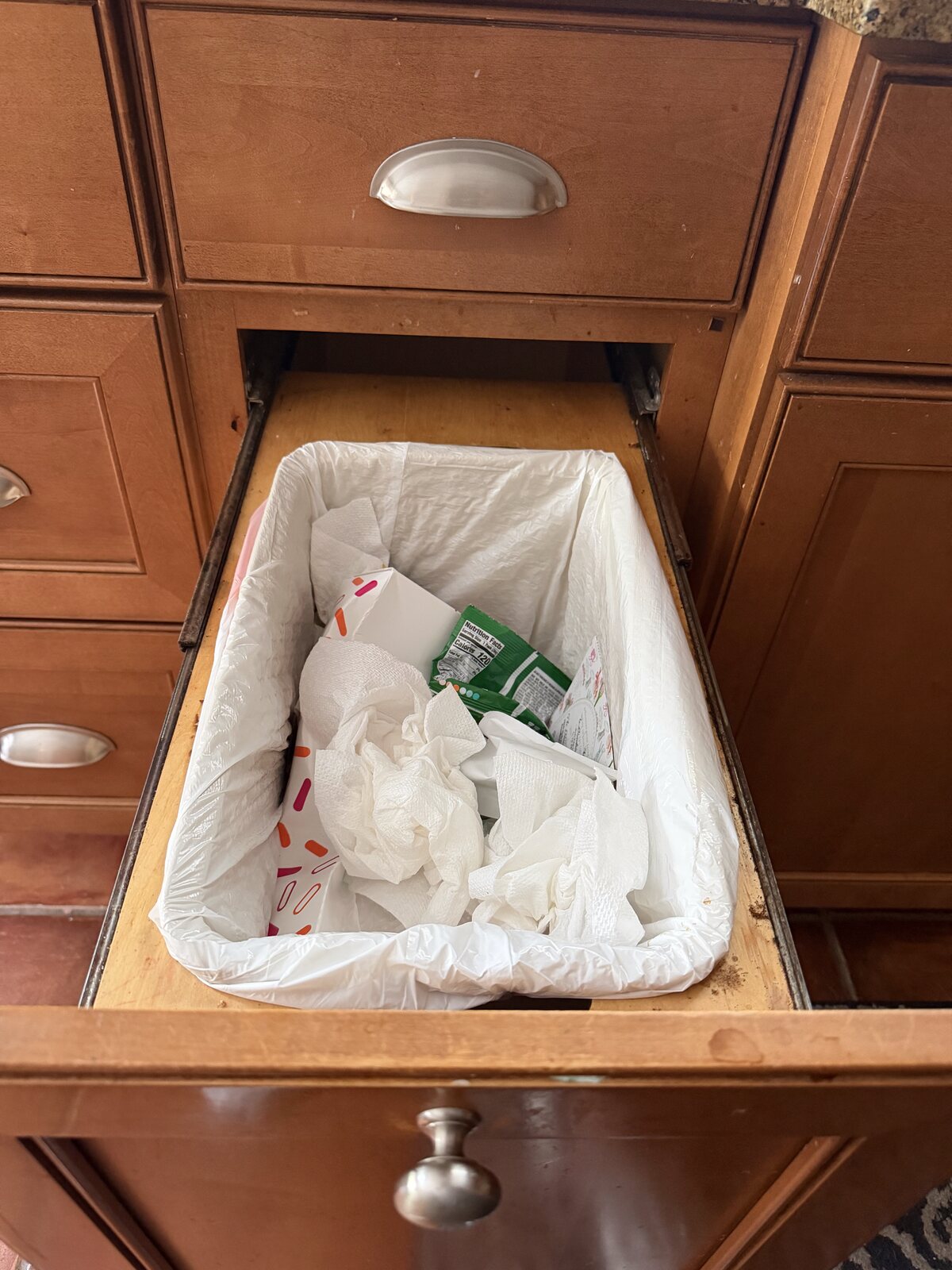

Second angle of a custom wood housing enclosing a pull-out trash can

Custom Housings

A wood frame or built-in box around the can that hides or replaces the lip.

Which Size Is Right for You?

Two measurements matter. Your gap is the space between the top of your trash can and the underside of the cabinet above it. That is what you measured in Check 2. Each Trash Shield's height is the part that sticks up above the can rim. Pick the size whose minimum gap your measurement meets.

Small

Minimum gap needed

3 in

Shield height

2.5 in

Medium

Minimum gap needed

4 in

Shield height

3.5 in

Large

Minimum gap needed

5 in

Shield height

4.5 in

If your gap falls between sizes, choose the smaller size.

All four colors (Black, White, Light Blue, Muted Red) are available in every size.

Order Trash Shield

Installing Trash Shield

Measured your gap and picked your size? Here's the 30-second install.

  1. Clip Trash Shield over the lip of the can.
  2. Drape your trash bag over both the can and Trash Shield. The inline lip captures the bag without disrupting normal bag use.
  3. Close the cabinet and confirm nothing is bumping or catching.

What It Looks Like When Done

When installed correctly, the shield sits flush against the lip, the bag is captured cleanly inside, and the cabinet closes without contact.

Trash Shield installed correctly, sitting flush against the bin lip with the bag captured cleanly inside the closed cabinet

Troubleshooting

Removal

Trash Shield clips off the same way it clips on. No tools, no adhesive, no marks left on your cabinet.
